This thread is for those of us who desire heated seats but their Gs didnt come with them. This car is my brothers car, but I am the mastermind behind the wiring, so I took the time to document how I installed factory heated seats from a P11 into my brothers P11. This how to can also be used for aftermarket heated seats in both the P10 and P11 and I will explain how further into the write up.

So a little back story my brother and I were strolling the junkyard when we came across a P11 with heated seats. So we snagged the full setup after bullshitting the junkyard people for $70.

Here are the list of parts we got for that $70 and this what you will need if your swapping heated seats into a non heated seat P11:

1. Entire Floor Harness (You will need to rip up the carpet to get to this harness. Its the harness that plugs into the seats, seat belts etc... Its pretty self explanatory.

2. Center console heated seat control switches.

3. The heated seats, or just the heated pads.

Wiring of the seats is easy if you have the entire full harness for the G. You just remove your current floor harness and put the one wired for the heated seats in its place, plug and play its easy. Now my harness came out of a 2001, my brothers car is a 99. The only thing the 99 had that the 01 did not was that the harness connector for the rear O2 sensor. Since my brother is running a DET in his G and that rear O2 sensor is disabled we did not worry about it. All one would have to do if they need that rear O2 sensor would be to trace the wires to their designated harnesses and de-pin and re-pin the new harness to match. Pretty simple, only 4 wires.

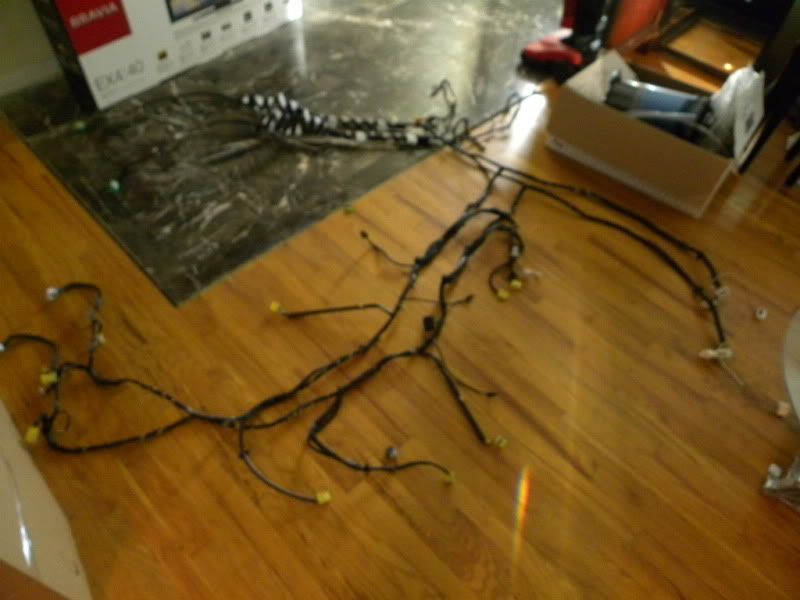

Here are the harnesses next to each other for comparison:

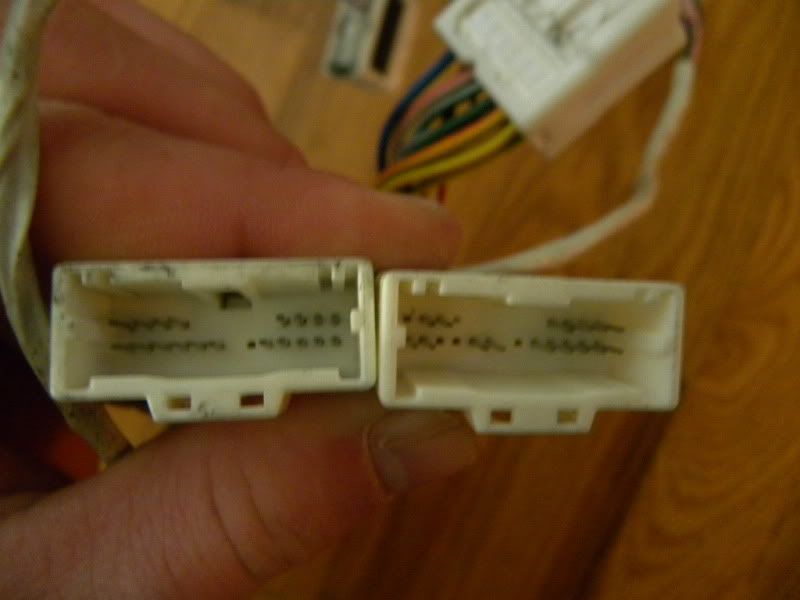

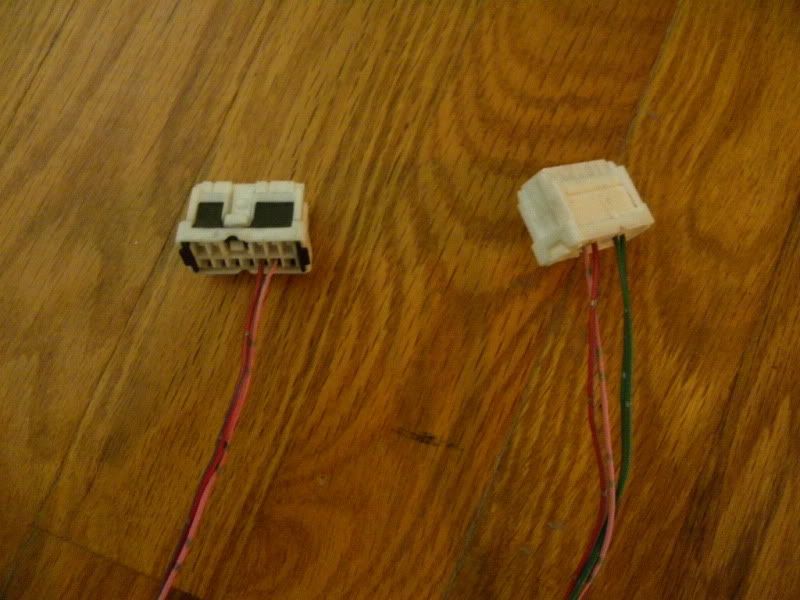

And the connector ends:
This harness contains that wires needed to power the heated seats, 99 non heated on the left, 01 heated on the right.


This picture shows the additional 3 pins the 99 harness (left) has for the rear O2 sensor vs the 01 (right) which does not have the rear O2 sensor:


The heated seat control switches are self explanatory, you unscrew them from the donor console, pop out the switch blanks on your console and install the switches in their place, plug them into the main harness for the seats and call it a day.

Thats it for the wiring, if your doing a factory swap in. Simple.

Now the tedious part is installing the heated pads into non heated seats. If the seats you find are in good condition or better condition than your current seats and they match swap seats, plug everything in and your finished. If your like my brother and have seats that do not match and the donor seats are tore up your going to want to pay attention to the next few steps.

What you will need:
New hog rings (Roughly 50-75)
Wire cutters
Hog ring pliers (Can typically be ordered off ebay and come with hog rings, or at an upholstery shop)
spray adhesive
12mm-14mm sockets and socket wrench
Razor blade
Patience

Ok first thing to do is remove the heating pads from the donor seats. Since these seats were pretty beat up, water logged and one the side impact air bag deployed, I just used a razor blade and carefully carved out the heating pads, it was easier for me I just went around the perimeter. Those of you who are afraid of cutting the pads by accident just take your time and take the seats apart with the steps shown below:

These pads are what we are after:
Bottom heater pad with outer leather skin removed:

Upper heater pad with outer leather skin removed:


The donors:

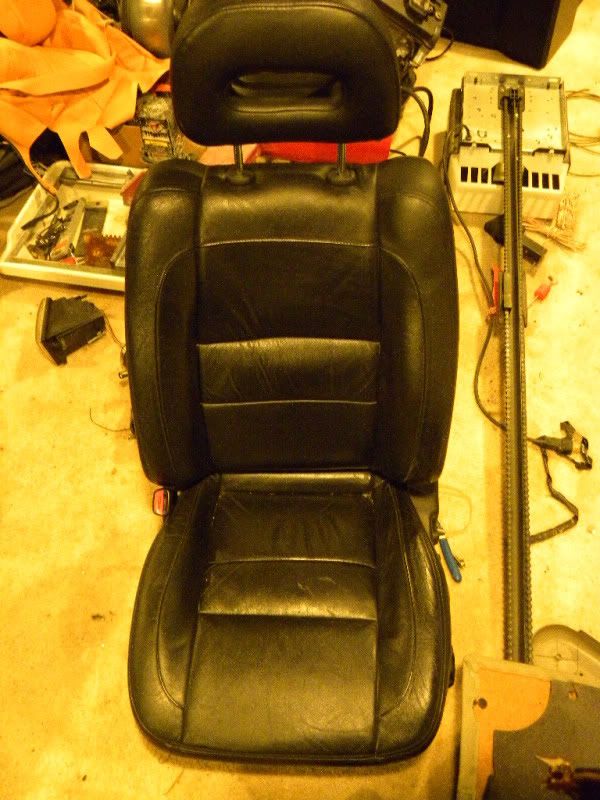

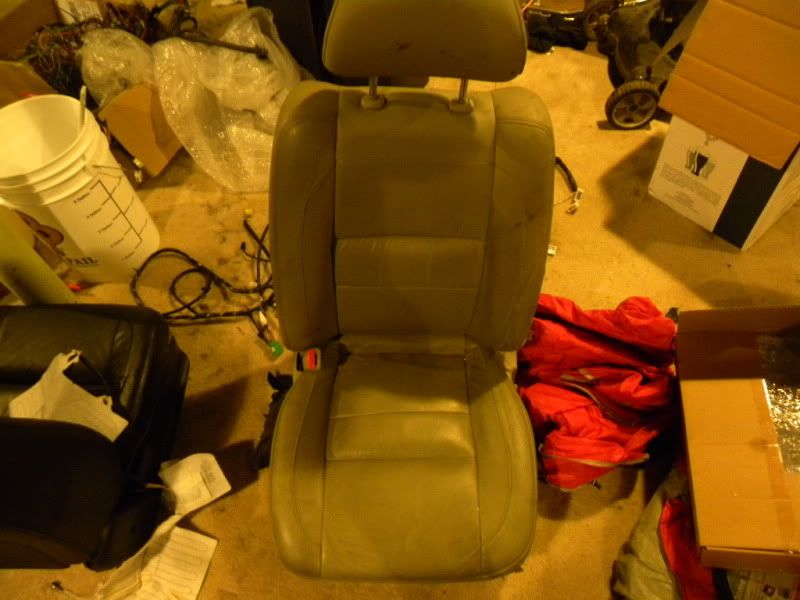

The receivers:

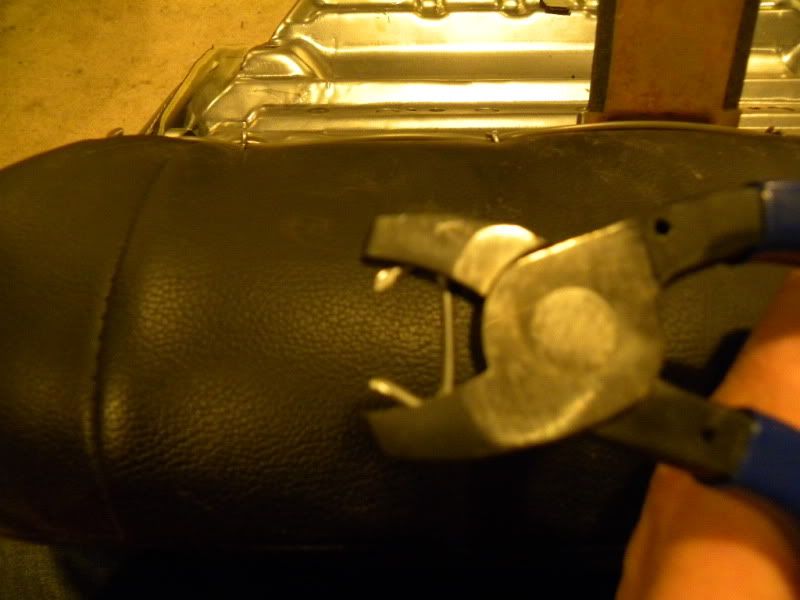

Start by removing these 2 hog rings by using the wire cutter to cut them free:

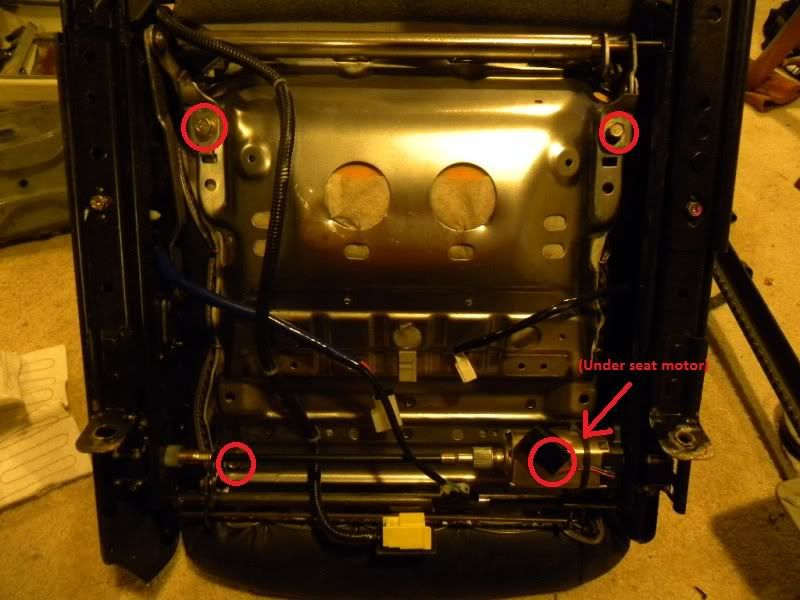

Then you need to remove the bottom cushion from the seat bracket by removing these (4) 12mm bolts:


Remove all attached wiring harnesses and the cushion will come away from the seat brackets like so:


Start removing the outer skin of the seat by cutting away all the visible hog rings away from the metal skeleton of the seat:

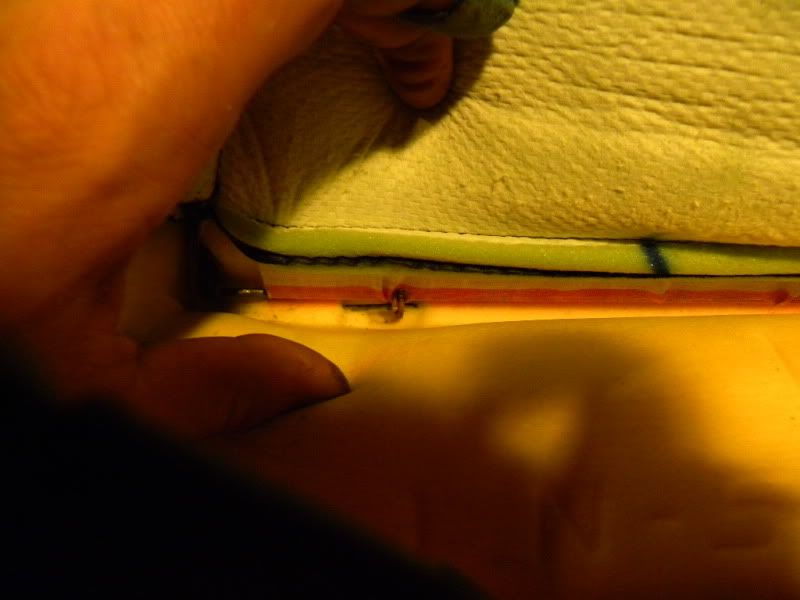

Start by carefully pulling the leather away from the seat, you will find that as you carefully peel the leather away there is hog rings down in the seat holding the skin down:

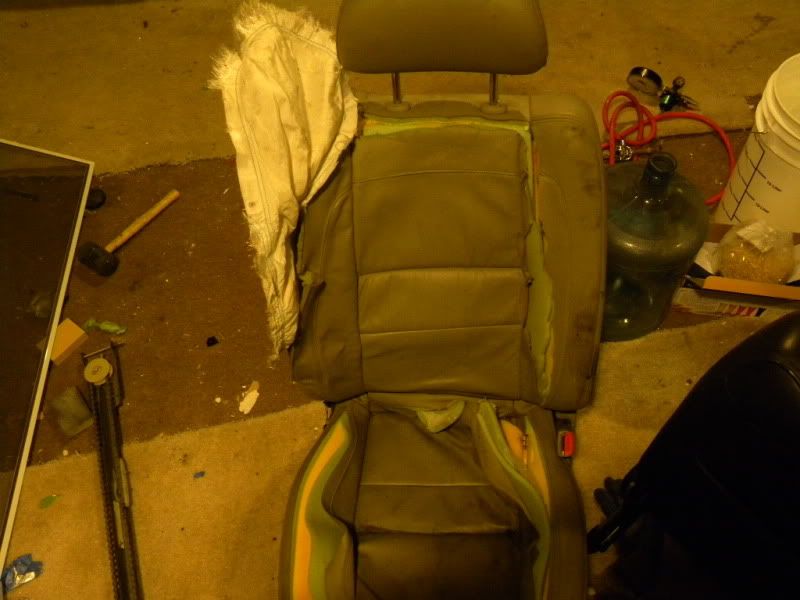

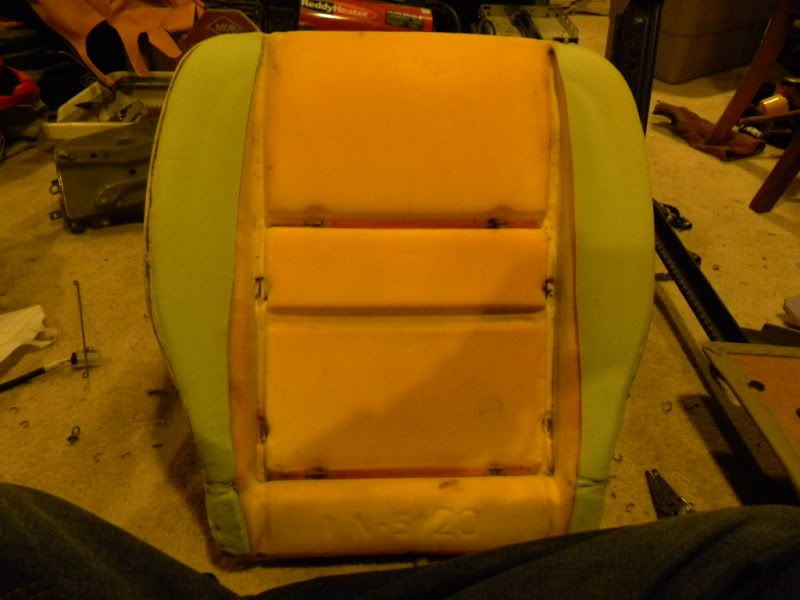

Carefully remove all hog rings, taking note to where each one is installed until you can successfully remove the skin from the seat, once you achieved this you will be left with just the inner cushion:

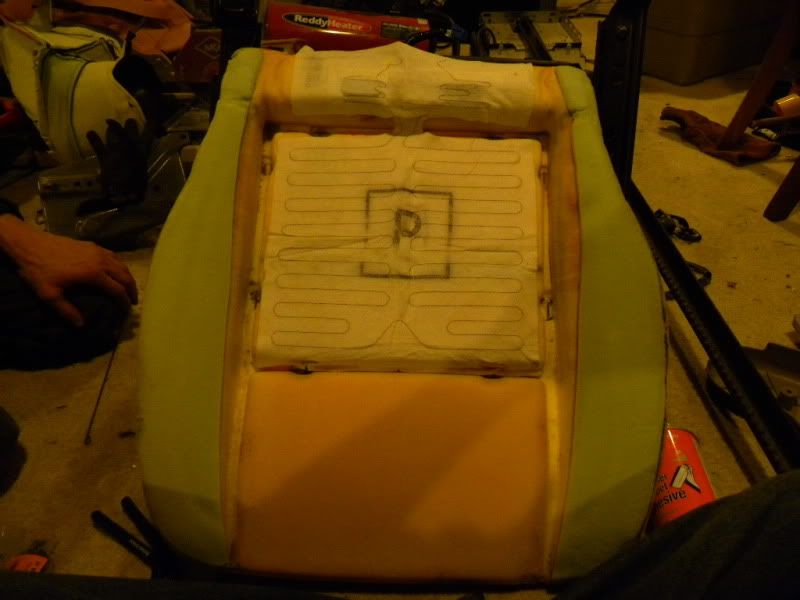

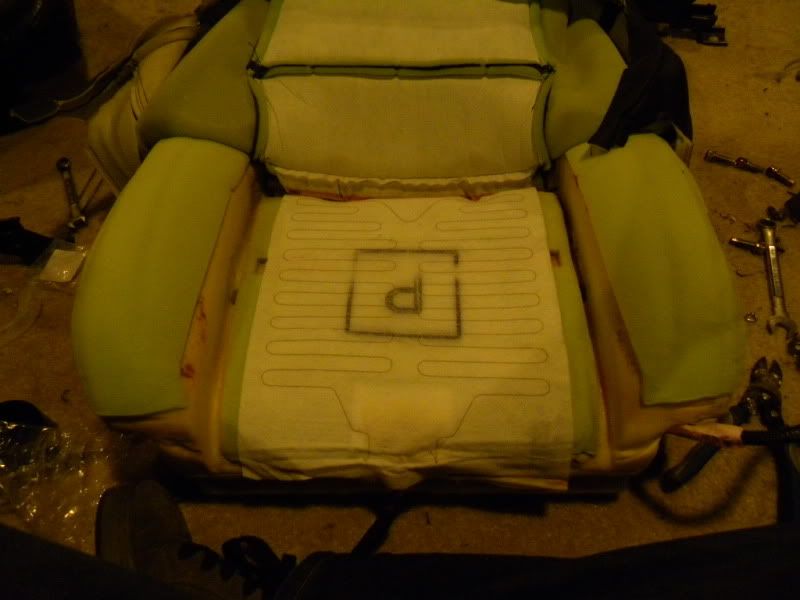

Now at this point you can remove install the heated pad:

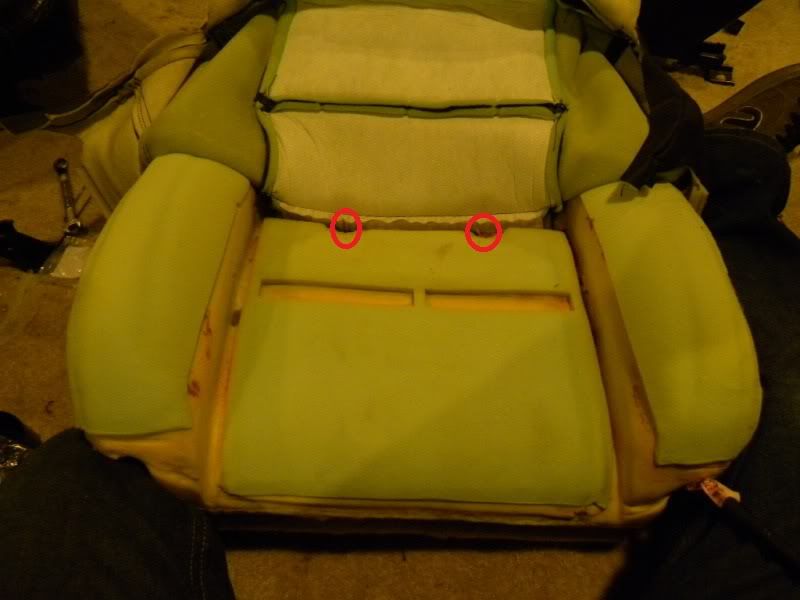

You will notice that at the top there are two loops where the pads can be secured to the seats via hog rings. I did this and I did one step further, you dont have to do this but I liked the idea of keeping the pads in place. I took some spray adhesive and carefully sprayed around the perimeter of the pads, being careful not to get glue on the coil in the pads.


Now that the heated pads are in place we can put the skins back on, you want to start by installing hog rings on the inner parts of the seat. I first started with the hog rings that secure the heated pads to the seat then I worked my way around on the inner parts and then finally the outside parts. Here is a pic of how the new rings go in the pliers:

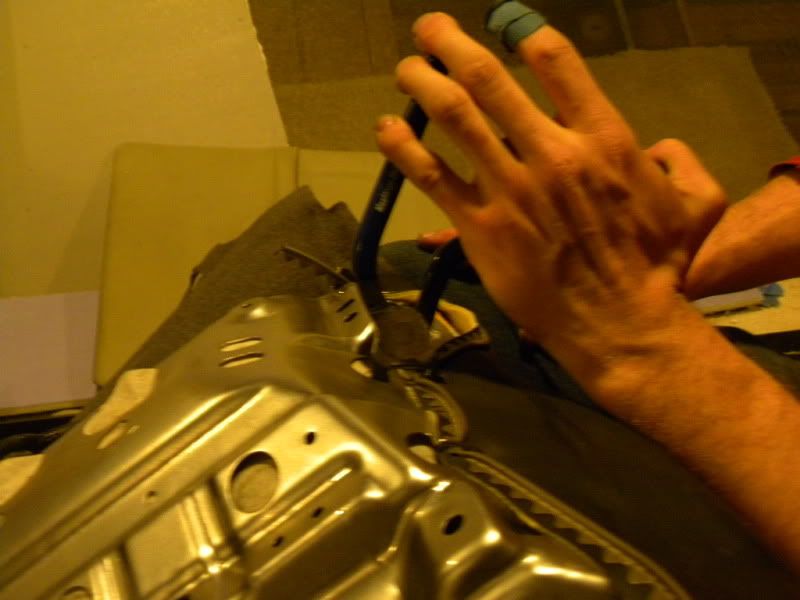

Installing them:


Install everything in reverse order as above and that takes care of the bottom cushion.

We now need to do the tops which is by far the easiest. Start by removing the back panel of the seats, pull from the bottom (NOT THE TOP!) The back will break away from the seats and you will see this:

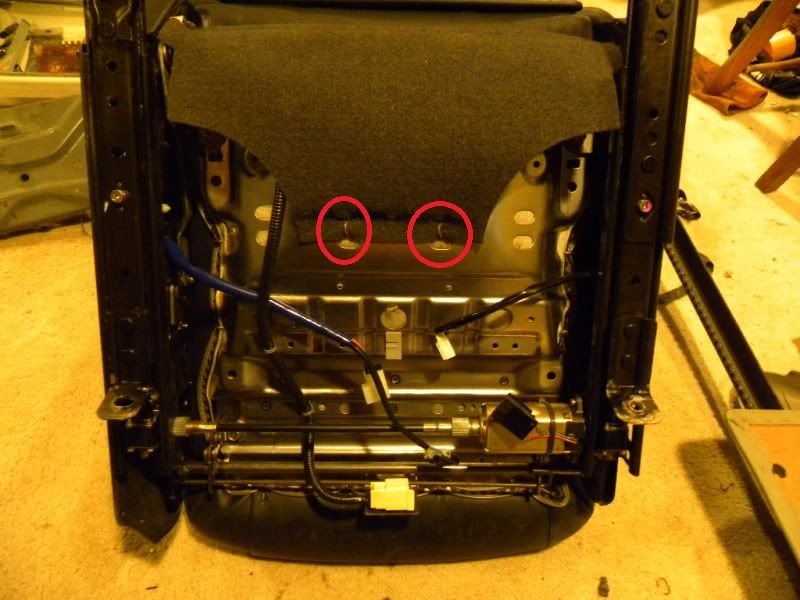

You will then want to remove these hog rings:

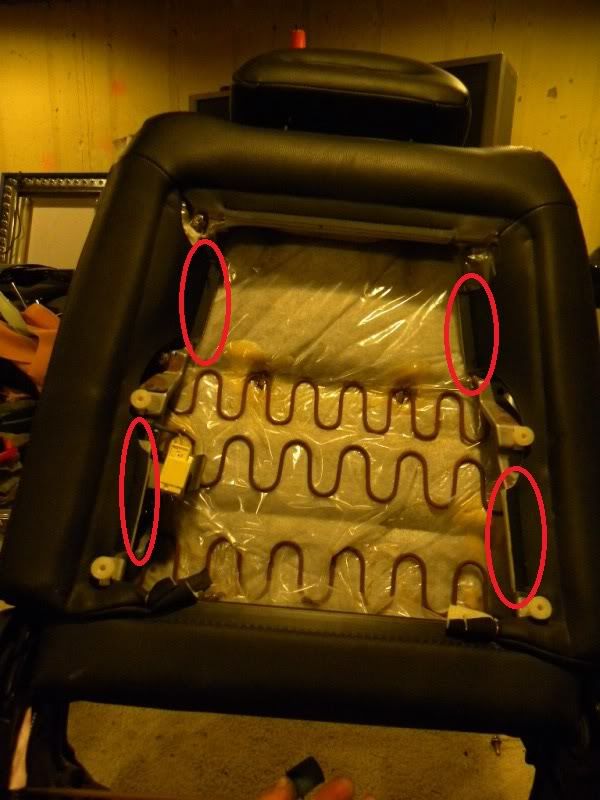

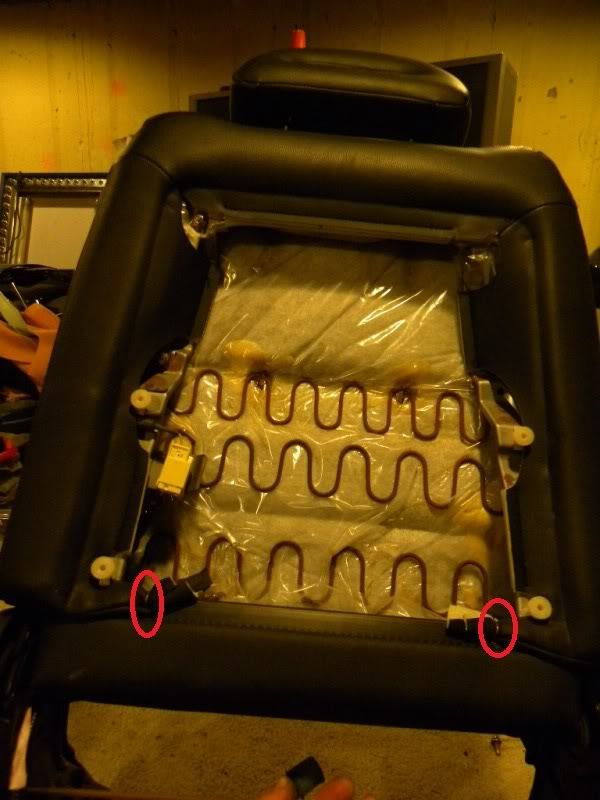

Then pop loose (the 4) what I call the plastic "hooks" on the inner parts of the seat back:

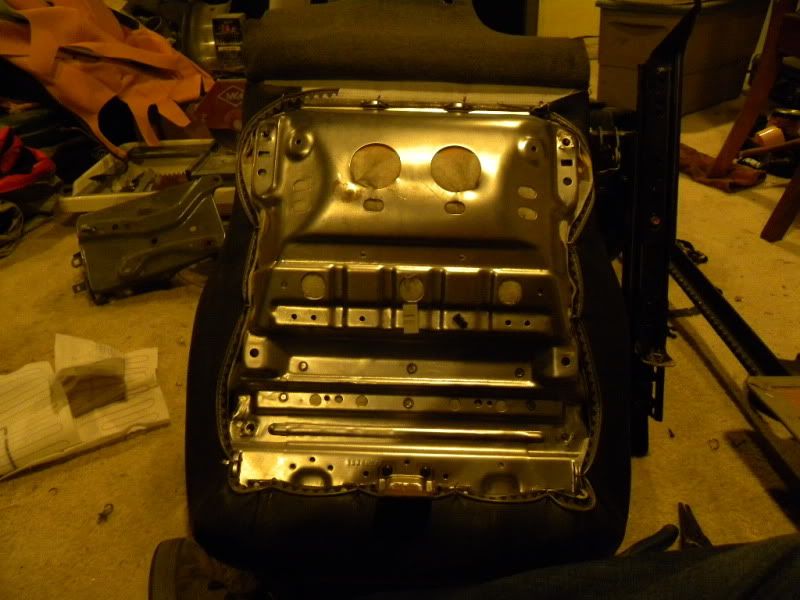

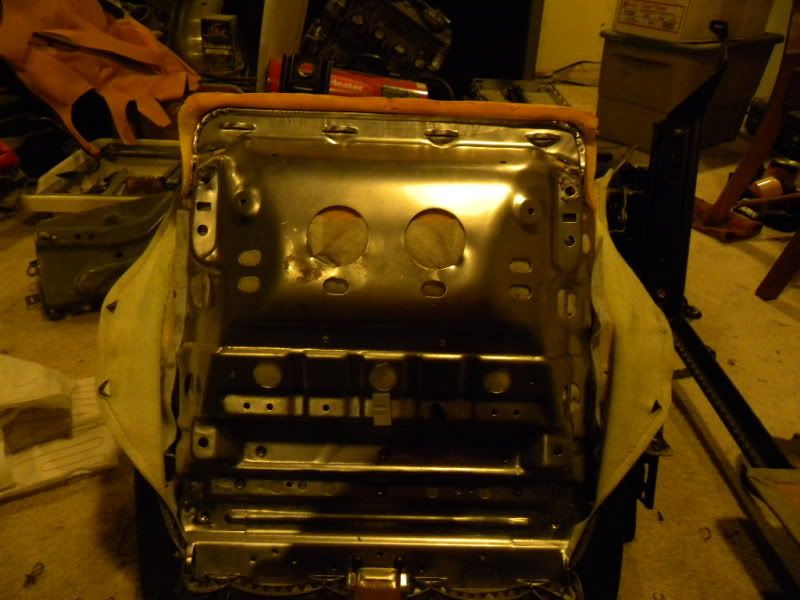

Now roll up the sides of the skin to expose the (4) 14mm bolts you will need to remove to separate the seat back from the seat bracket:

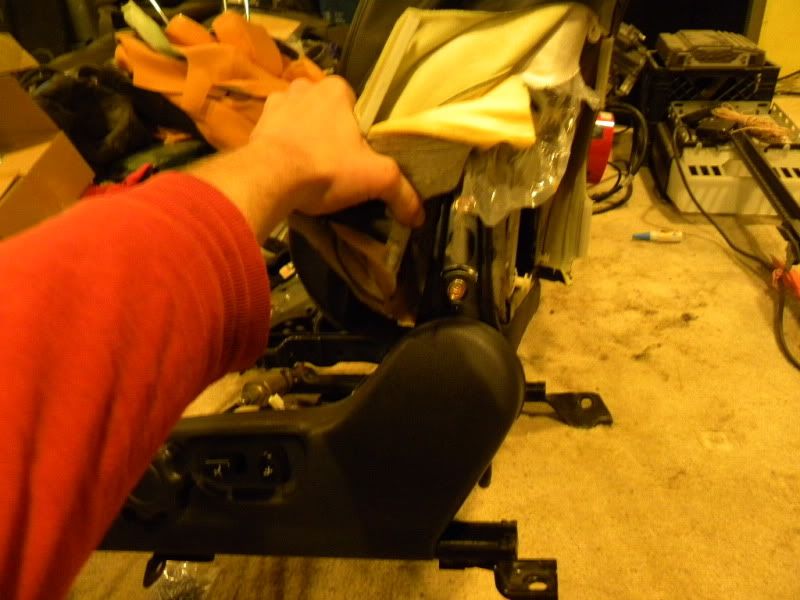

Once those 4 bolts are removed, you can now roll the skin up high enough till you reach these 2 hog rings, remove them:

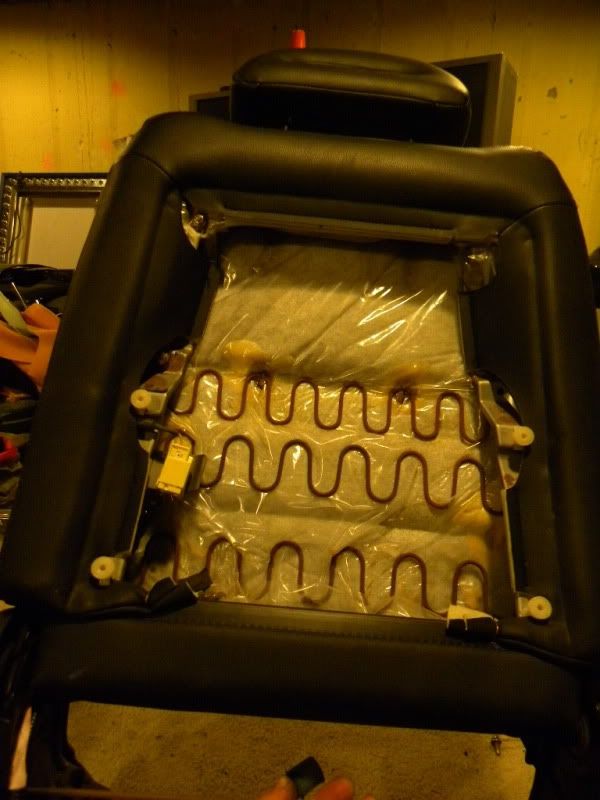

Now you can install the heating pad in the same fashion as you did the bottom cushion:


Reinstall everything in reverse of removal and your seat will look like it did when you started:


Plug the seats into your car thats already wired for the seats and enjoy heated seats!

Now this same thing can be applied when using aftermarket heated seats. You can even use the aftermarket heating pads with factory heated seat switches for that factory look. Various Nissans/Infinitis of that era that had heated seats used the same switches. This makes acquiring that factory look with aftermarket availability.

What you will need to do is wire you car up according to the instructions stated with the aftermarket seats you buy and install the heated pads in the same fashion is mentioned above. Below is how you can use Nissan/Infiniti factory switches to power your aftermarket heated seats

This is the wiring diagram for the switches for a P11 taken from the FSM:


Basically the diagram says this:
Heated seat left:
Black = Ground
Pink = High heated seat setting
Brown w/White Stripe = Low heated seat setting
Green w/Red Stripe = 12v Ignition

Heated seat right:
Black = Ground
Shielding braid = High heated seat setting
Orange w/Black Stripe = Low heated seat setting
Green w/Orange Stripe = 12v Ignition

Knowing this you can now match the schematic of the aftermarket heated seats to be controlled by the factory switches by matching the wires to the correct signal wires.

Happy Heated Seats!


·
